- 18 Color Change Modes Include:
Blue, Green, Red, White, Yellow, Purple and many more
- 1st-7th Color Cycle Flashing And Fading Modes.
- 1st-18th Color Flashing And Fading Mode.
- Brake Warning Function
Applications:
1. RGB5050 Flexible LED strips
2. Rigid LED strip
3. RGB LED angle eye

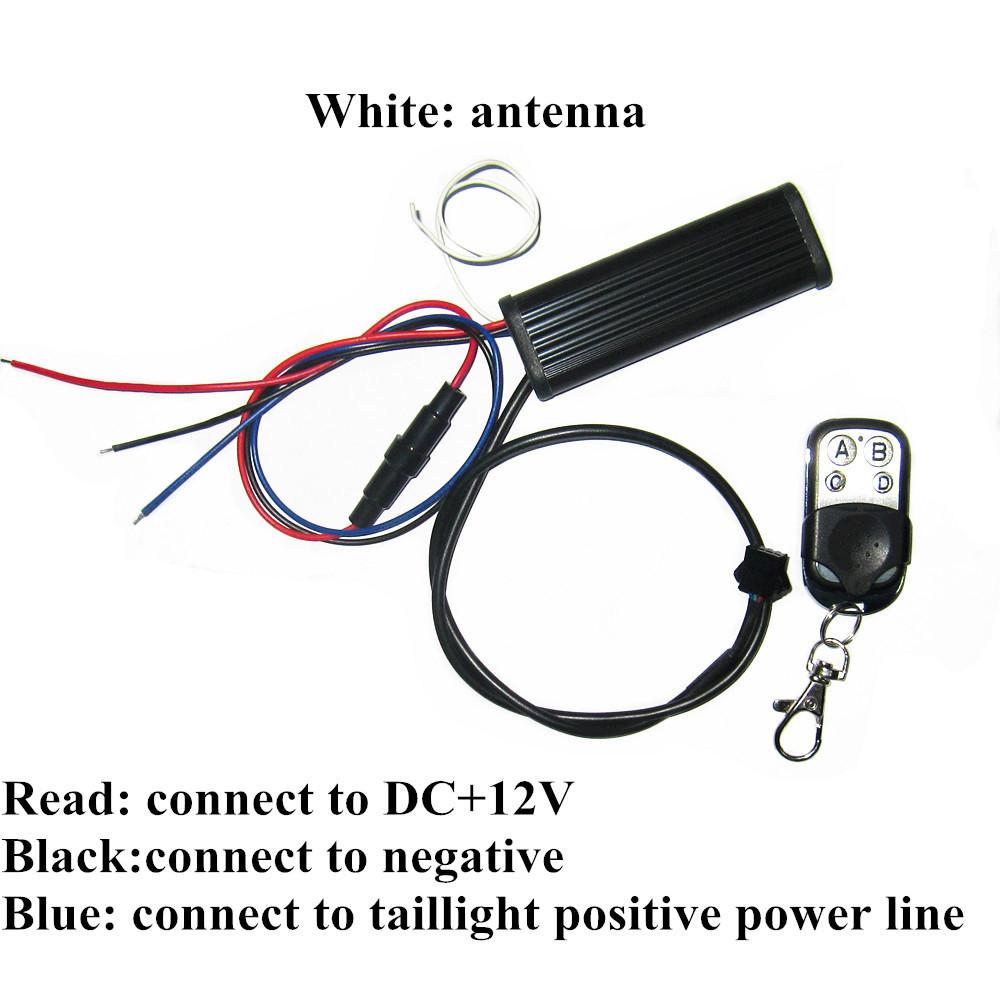

Remote Control Function:
A key:
This is the main function key, press it once, it shows a color pattern (1st-18th), in static mode, press the A key to the current LED stepless dimming.
B key:
the gradient or hopping mode (19th-20), long press B to achieve healthy color shift from slow to fast, in static mode (1st-18th), press B, lights from the current mode static to blink.
C key:
in the gradient or hopping mode (19th-20th), press C to achieve healthy color change from fast to slow, in static mode (1st-7th), press C, lights from the current mode static to change slowly fades.
D key:
Press D to control controller ON and OFF. At 2nd-18th color Press D key 3 seconds the system return 1st color (red).
Remote Distance: Max 30ft

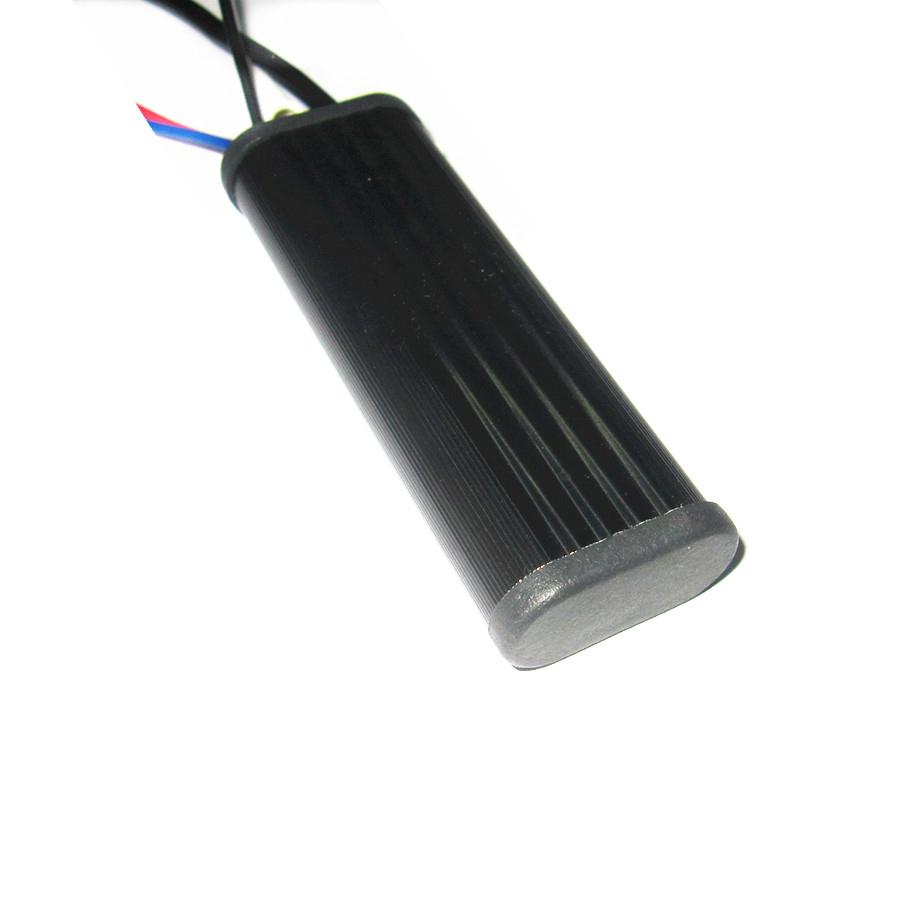

Control Unit Description:
Material: Plastic, Electronic Parts
Net Weight:80g
Dimensions: Controller: 85 x 30 x 15mm/ 3.3 x 1.1 x 0.59 inches (L*W*T)
Remote Size: 55 x 30 x 18mm/ 2.2 x 1.2 x 0.7 inches (L*W*H)
Work Voltage: DC 12V
Length Of The Output Wire: 17 inch
Control Type: Common Anod
Output Power: Max 40W
